Description

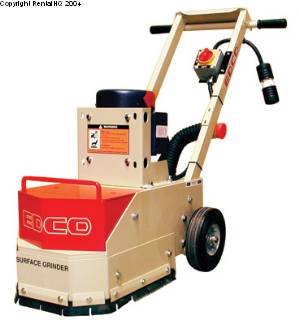

Single-Disc Grinder
- This 175 RPM grinder uses rotating discs to level, smooth or clean the top surface of a concrete slab, using various inserts. See below for specific information on insert applications.
- Can be used to level high spots up to 1/8 inch.
- It is ideal for grinding smaller areas (up to a few hundred square feet).
- 11″ working width.
- Requires 120 volts with a minimum 15 amp circuit.
- Garden hose fitting for water hook-up.
- Shop vac port for dust containment.
- Includes 1 multi-accessory disc which accepts various grinding inserts.
SEE BELOW FOR DESCRIPTIONS OF THE VARIOUS GRINDING TOOLS AVAILABLE FOR THIS MACHINE:
Dyma-Sert diamond segments (right side of photograph below) are best suited for:
- Smoothing rough concrete or trowel marks
- Removing urethane or epoxy thin-coats
- Removing thin mastics and thin-set
- Leveling uneven surfaces
- Will grind approximately 200 to 250 square feet per hour and up to 1/32 inch depth per pass.
Strip-Sert carbide-tipped blocks (center in photograph below) are best suited for:
- Removing mastics, paint buildup, resins, tar, fiberglass, ice, industrial buildups
- Will not grind into concrete- will clean the surface without damage to the concrete below.
- A general rule of thumb is if the coating is removable with a putty knife, these will work well.
- Carbides have four surfaces that can be rotated for maximum use
Scarifier steel cutting assemblies (left side of photograph below) are best suited for:
- Breaking up hard-surfaced deposits of oil-dri, fiberglass, rubber grout or plaster
- Removing concrete buildups
- Texturing slick floors
- A set of scarifiers typically lasts from 3 to 6 hours
Stones (not pictured) are best suited for:
Removing light trowel marks and rain marks, yet are much slower than Dyma-serts.
